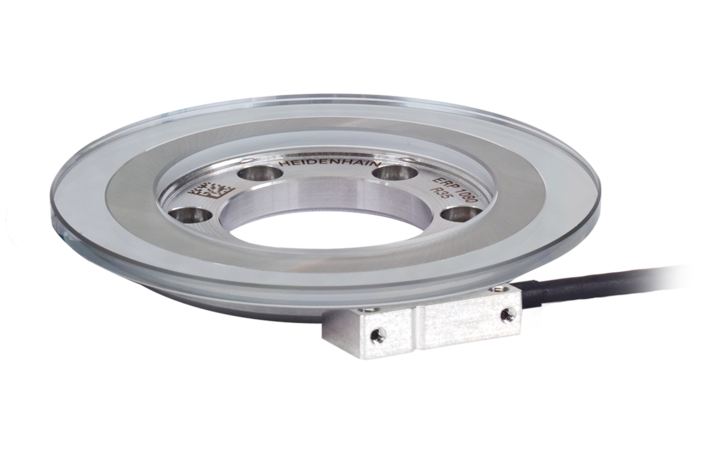

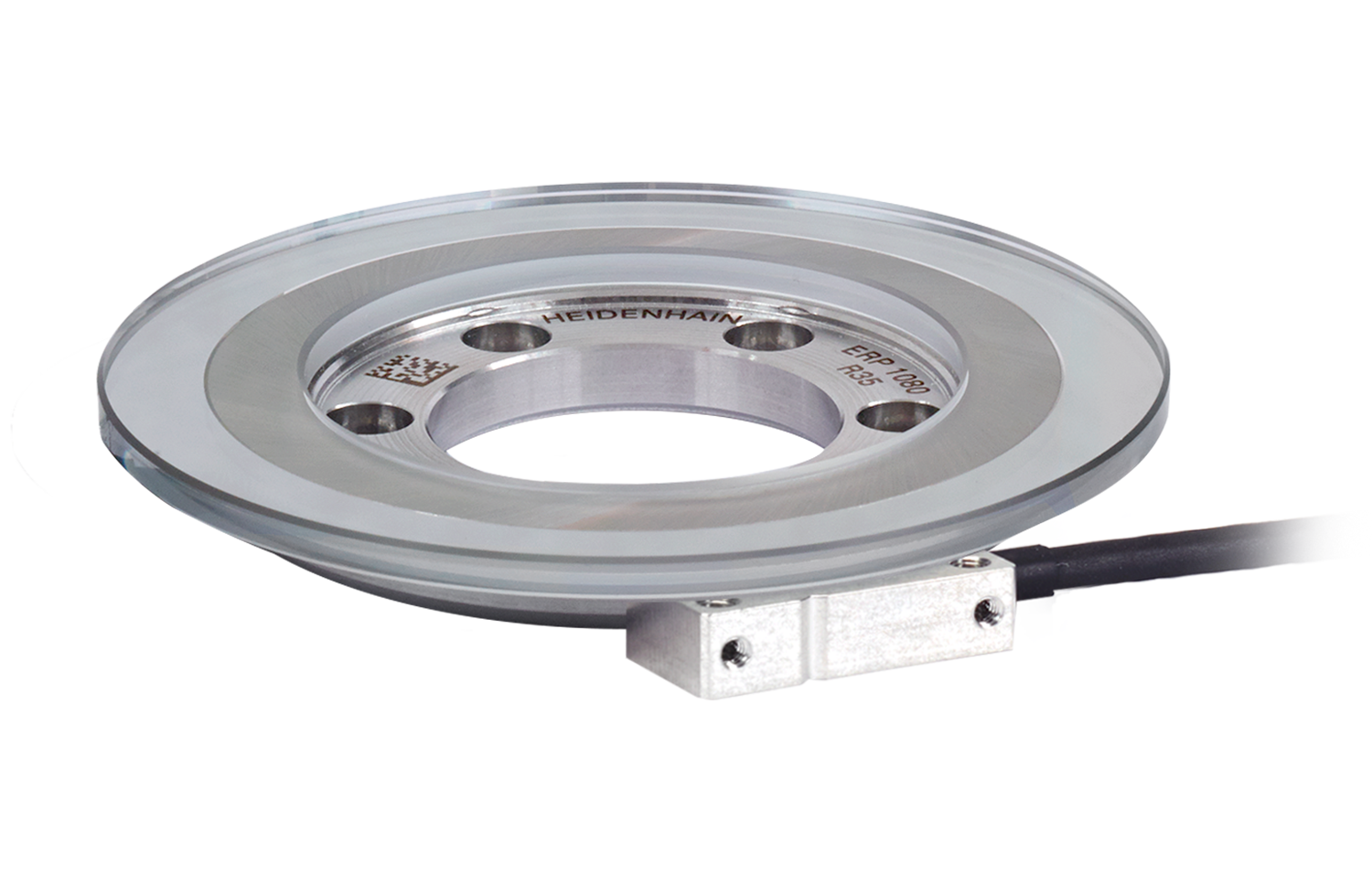

ERP 1000 series

Incremental optical angle encoders with very high resolution and accuracy

  • Very high resolution and accuracy
  • Low mass and low mass moment of inertia
  • Integrated LED function display
  • Graduation accuracy: ±0.9” to ±4”
  • Signal periods: 23 000 to 63 000
  • Diameters: 57 mm to 151 mm
  • Interfaces: TTL, 1 VPP, EnDat 2.2

Signal-quality indicator

A multicolored LED in the connector of the ERP 1010 and ERP 1070 permits a reliable assessment of the incremental signals and the reference mark signal. The signal quality is indicated by different colors. A blue LED shines when the reference mark is crossed.

Highly accurate scanning

Very small measuring steps and high accuracy: the ERP 1000 series angle encoders use interferential scanning. A phase grating applied to a glass substrate serves as the measuring standard.

Consistent signal quality

The HSP 1.0 ASIC developed by HEIDENHAIN ensures consistently high scanning signal quality. The ASIC compensates for a drop in signal amplitude by increasing the LED current, thus maintaining the optimal signal shape under contamination. Noise is also kept uniformly low.

Easy installation

Short signal periods normally require very narrow mounting tolerances for the distance between the scanning head and measuring standard. The ERP 1000 series is particularly easy to install due to its wide mounting tolerances, within which the quality of the output signals is barely influenced.

Contact person – Sales

International Sales

+49 8669 31-3142

internationalsales@heidenhain.de
Find your nearest representative

Product variants

Modular angle encoders consist of a circular scale and a scanning head. Please select these two components from the lists. For further information, please contact our Sales department by phone or e-mail, or through our contact form.

Circular scale
Scanning head
