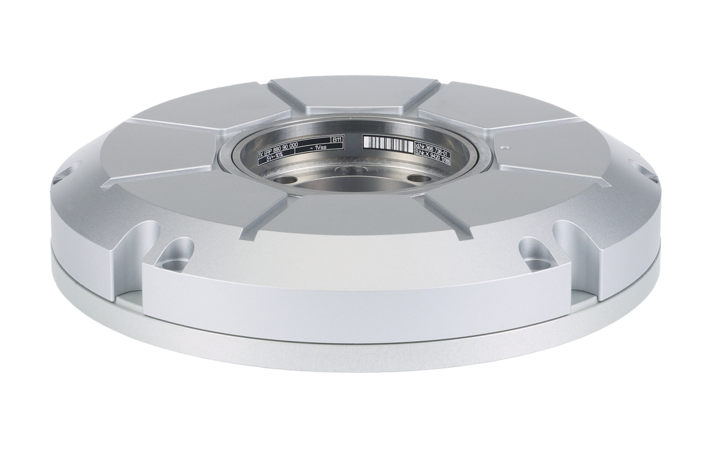

ERP 880

Incremental optical angle encoders with high accuracy

  • High resolution
  • Graduation accuracy: ±0.9”
  • Signal periods: 180 000
  • Hub inside diameter: 51.2 mm
  • Optional cover
  • Interface: 1 VPP

Very high accuracy

The ERP 880 angle encoder uses interferential scanning. The scanning unit consists of two scanning points, which enables highly accurate centering of the circular scale, thus allowing the encoder to meet very high accuracy requirements.

Reliable protection

Ready for harsh shopfloor conditions: with an optional cover cap, the ERP 880 series offers excellent protection from contact and contamination, permitting an IP40 or IP64 rating.
