Evaluation units and software for metrology applications

Evaluation units and evaluation software from HEIDENHAIN feature numerous metrology and statistical analysis functions, ensuring a solution for every application. In automation applications, measurement results can be further processed through integrated switching functions. And thanks to a splash-proof front panel and rugged cast-metal housing, the HEIDENHAIN evaluation units can easily handle harsh shop environments.

GAGE-CHEK 2000 series

  • Evaluation unit for reliable measurement and simple evaluation
  • 7-inch screen for intuitive multitouch operation (800 x 480 pixels)
  • Up to three axes (1 VPP, 11 µAPP, EnDat 2.2, TTL)
  • Switching functions for simple automation tasks
Find out more

GAGE-CHEK 4000 SW

  • Evaluation software for reliable meaurement data collection
  • LOG function for uploading data directly into Excel
  • Intuitive user interface
  • Configurable axis naming
  • Graphical dial gage for measurement visualization
Find out more

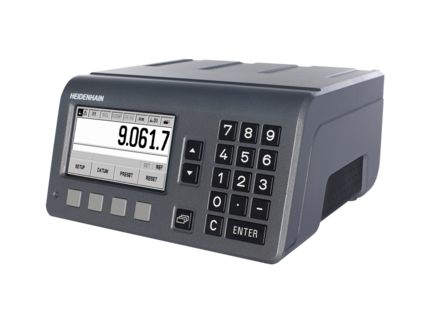

ND 200 series

  • Digital readout for measuring and inspection stations or simple measuring and positioning tasks
  • 4.3-inch screen and keyboard
  • Up to two axes (1 VPP, 11 µAPP, EnDat 2.2)
  • Switching functions for simple automated tasks
Find out more
